Solving Complex Wall Geometries: Why Modular Alloy Formwork is the Best Fit for Modern Architectural Designs

As architectural designs become more ambitious, construction teams are increasingly faced with complex geometries: thick shear walls, varying story heights, and intricate corner configurations. Traditional formwork often struggles to adapt to these "non-standard" requirements without excessive on-site cutting and waste.

This is where the Modular Alloy Wall Formwork System steps in, offering a "Lego-like" flexibility that transforms how we build complex structures.

1. The Challenge of Shear Walls and T-Junctions

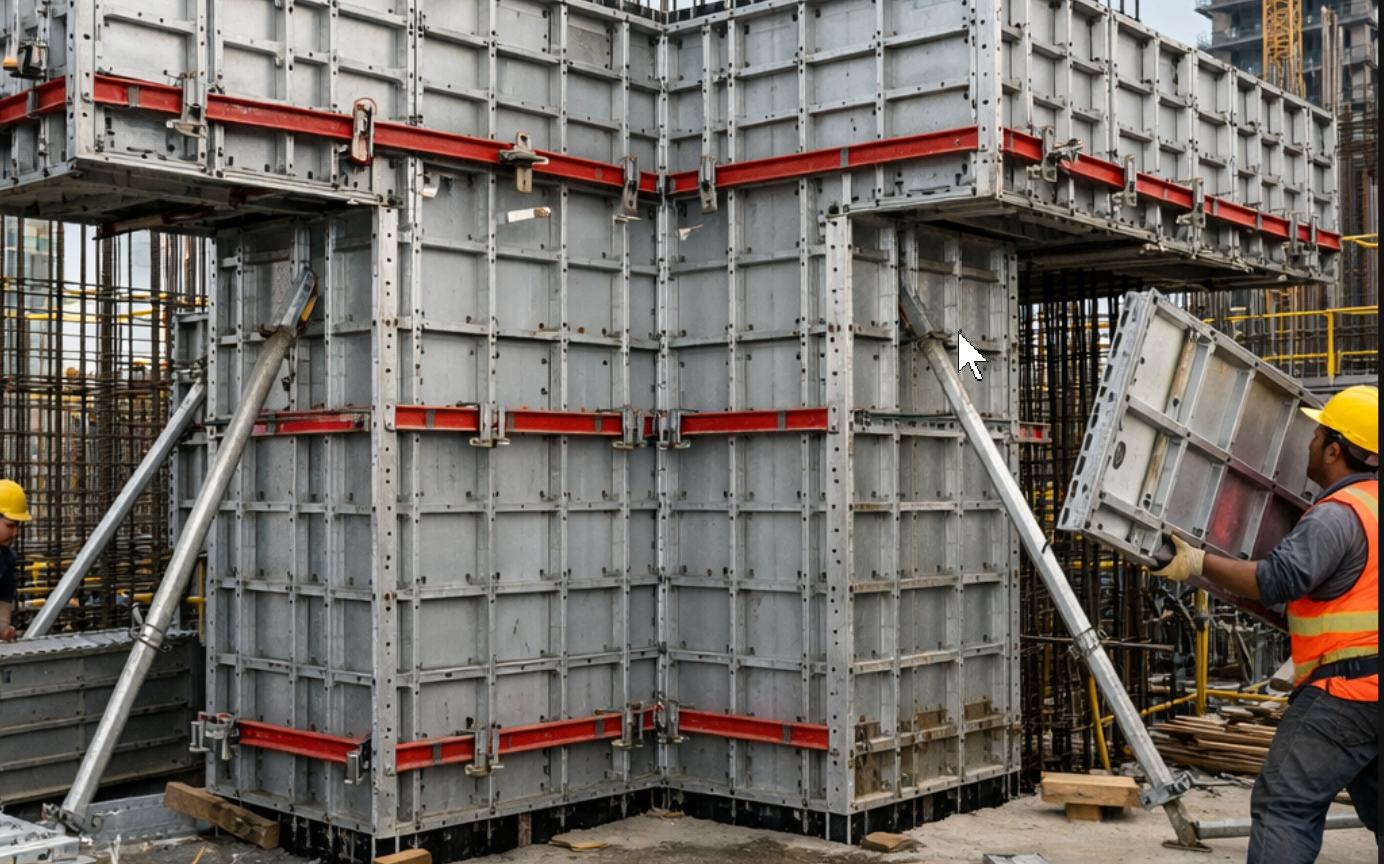

In high-rise residential and commercial buildings, shear walls are the backbone of structural integrity. However, their intersections (T-junctions and L-corners) are notorious for being difficult to form.

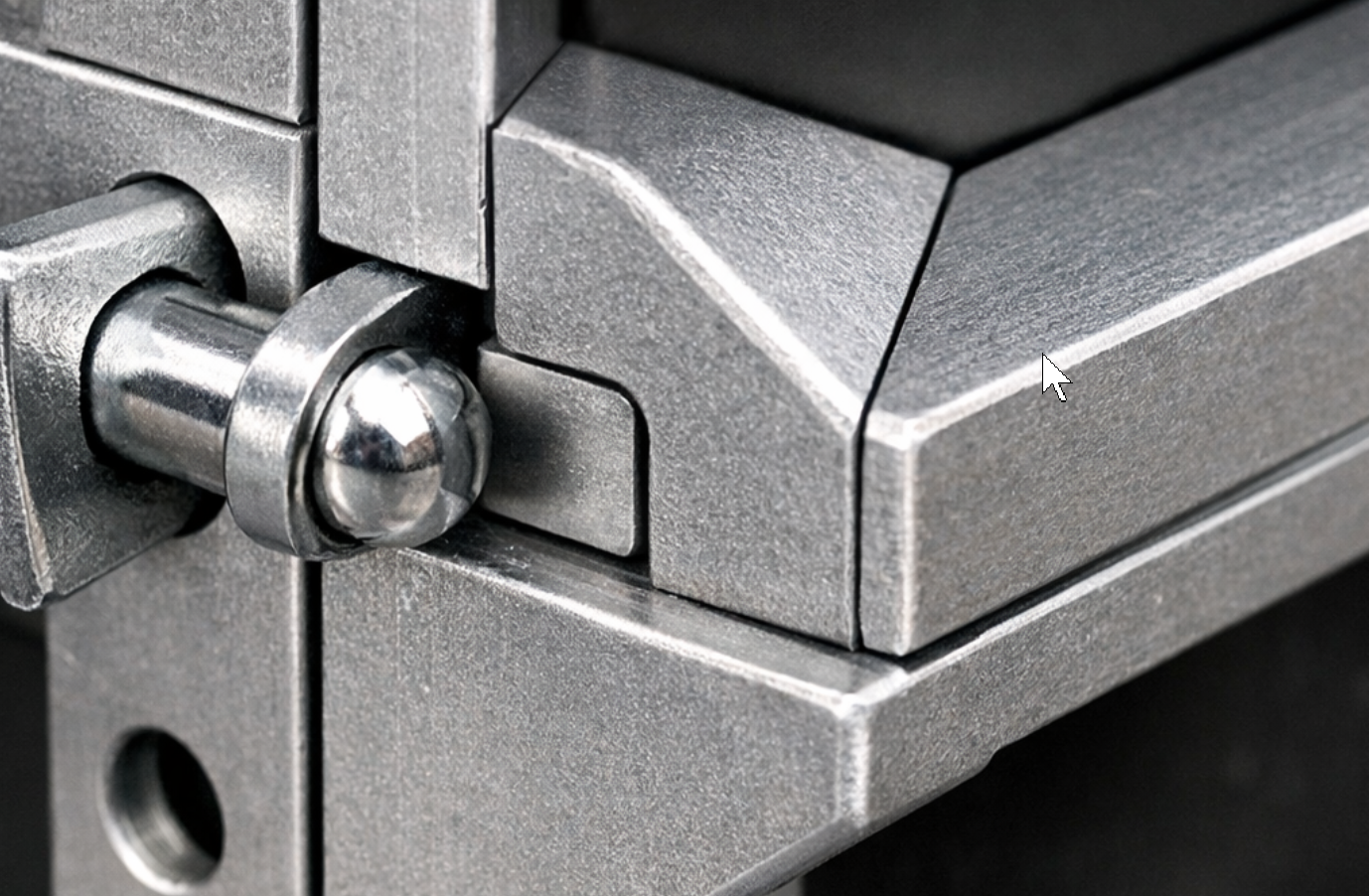

Modular alloy systems utilize standardized corner elements and internal/external corner keys that lock together with millimetric precision. This eliminates the "blowouts" often seen at corners and ensures that even the most complex wall intersections are structurally sound and perfectly aligned.

2. High Pressure, High Performance

Modern construction often involves high-pressure concrete pumping to reach upper floors quickly. Traditional timber formwork can warp or "sink" under this lateral pressure.

High-strength aluminum alloys (like the 6061-T6 series) provide the necessary rigidity-to-weight ratio. Even when dealing with walls over 3 meters high, the modular panels maintain their shape, ensuring that the final structure matches the CAD architectural drawings exactly.

3. Rapid Adaptation to Varying Floor Heights

One of the biggest time-wasters in construction is re-modifying formwork when moving from a high-clearance lobby to standard-height residential floors.

Standardized Heights: Panels come in heights like 2600mm, 2700mm, or 3000mm.

Filler Plates: For unique heights, small "filler" modules can be added horizontally or vertically, allowing for rapid adaptation without purchasing entirely new sets of equipment.

4. Seamless Integration with Other Systems

A wall doesn't exist in isolation; it meets slabs, beams, and columns. The Wall Formwork System by Shoulv is designed to integrate seamlessly with slab and beam formwork. This creates a monolithic pouring environment, where walls and slabs can be cast simultaneously, significantly reducing the "joint lines" and enhancing the building's earthquake resistance.

FAQ Section

Q1: Is modular alloy formwork heavy to handle for complex designs?

A: Quite the opposite. Each panel weighs approximately 20-25 kg per square meter, meaning it can be manually handled and assembled by a single worker without the need for heavy cranes, even in tight or complex corners.

Q2: How does the system handle non-standard wall thicknesses?

A: Our system includes adjustable fillers and a variety of tie-rod lengths. This allows the modular panels to accommodate any wall thickness required by the structural engineer while maintaining perfect alignment.

Q3: Can these modular panels be reused if the next project has a different layout?

A: Yes. Over 80% of the standard components are universal. For a new project layout, you typically only need to supplement a few custom filler pieces, making the system highly cost-effective across multiple projects.

Struggling with a Challenging Building Design? Don't let complex geometries slow down your project timeline. Our engineering team specializes in creating custom layout plans tailored to your specific blueprints. Contact Us Today for a free technical consultation and see how our modular alloy system can simplify your next build.
